6U Rack Shelf for Apple Mac Pro (2nd Generation)

P/N: 112-5355

$300.00

Sliding shelf for rack mounting 6 Mac Pros in 6U of rack space



  • Snap-in tool-less rails for fast and easy installation
  • Adjustable mounting depth 28.5" - 30" (724 - 762 mm)
  • Includes adhesive cable tie-downs for managing cables
  • Compatible with 2nd Generation (late 2013) Apple Mac Pro
  • Integrated airflow duct isolates hot and cold aisles for large scale deployments

Only mounts to racks with square holes

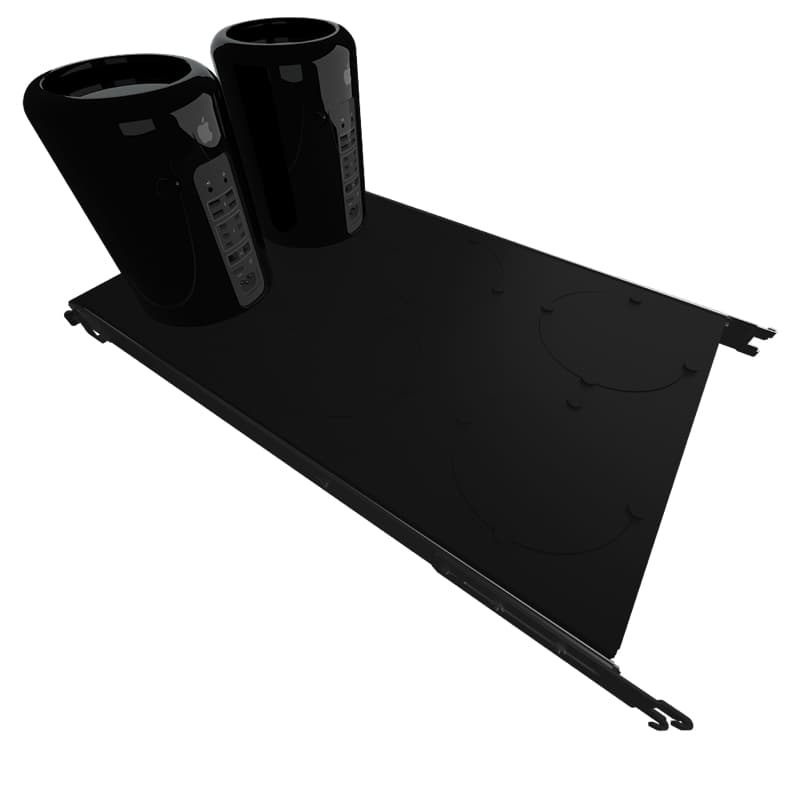

Designed to hold up to 6 2nd Generation Mac Pros (late 2013), the MP Rack is the perfect solution for server farms, render farms, and virtual systems.

Its tool-less installation makes getting up and running a snap. The shelf itself takes up 1U of space and 6U with 6 Mac Pros mounted.

Our shelf's passive ventilation system designed with the Mac Pro isolates hot and cold sides. Cool air passes through the front of the shelf's air intake into a lower chamber where the Mac Pro's air intake resides. The Mac Pro's cooling system then passes the hot air through the top column back into your rack's hot area where it is then vented out.

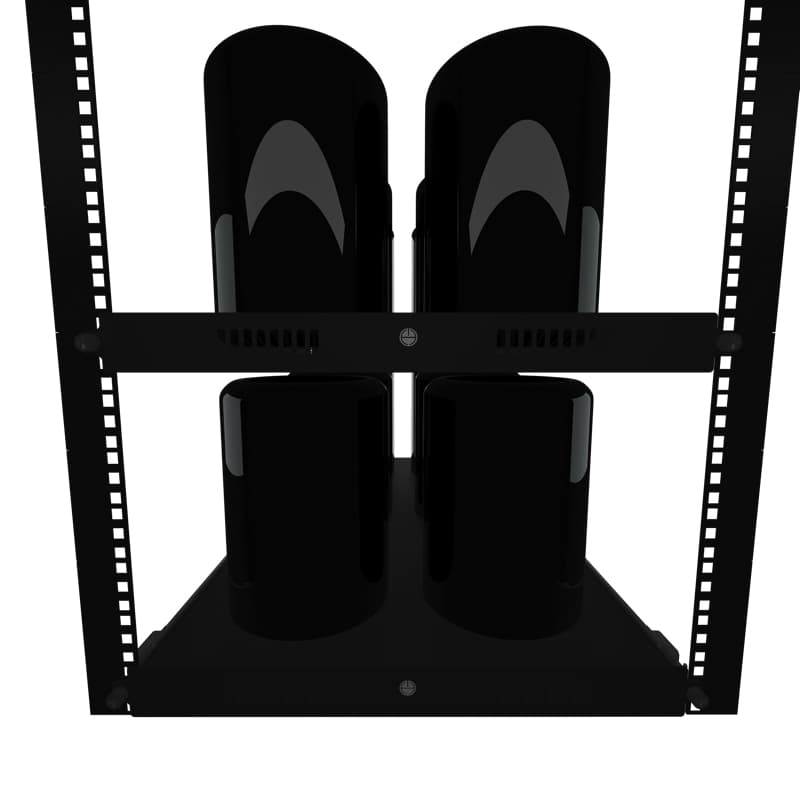

6U Total Space

The MP Rack is designed to utilize the least amount of space in your rack. The shelf itself is only 1U high. When you install the Mac Pro, it becomes a 6U unit due to the Mac Pro's height.

MP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Stacked View MP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Stacked View

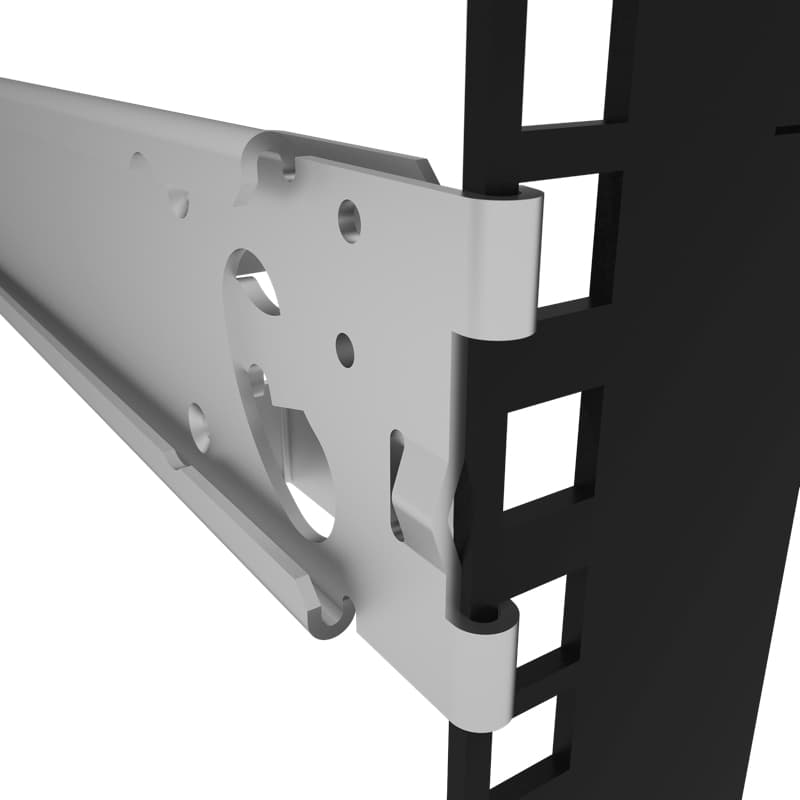

Tool-less Installation

The MP rack can be installed in less than 5 minutes with no tools. Each rail securely engages the square hole rack posts and then the shelf is slid into place.

MP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Tool-less InstallMP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Tool-less Install

Cable Management

We include cable management tie downs for you. They're adhesive backed to you can place them where it's most convenient for your needs. There's also an option to install at the rear of the rack.

MP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Cable ManagementMP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Cable Management

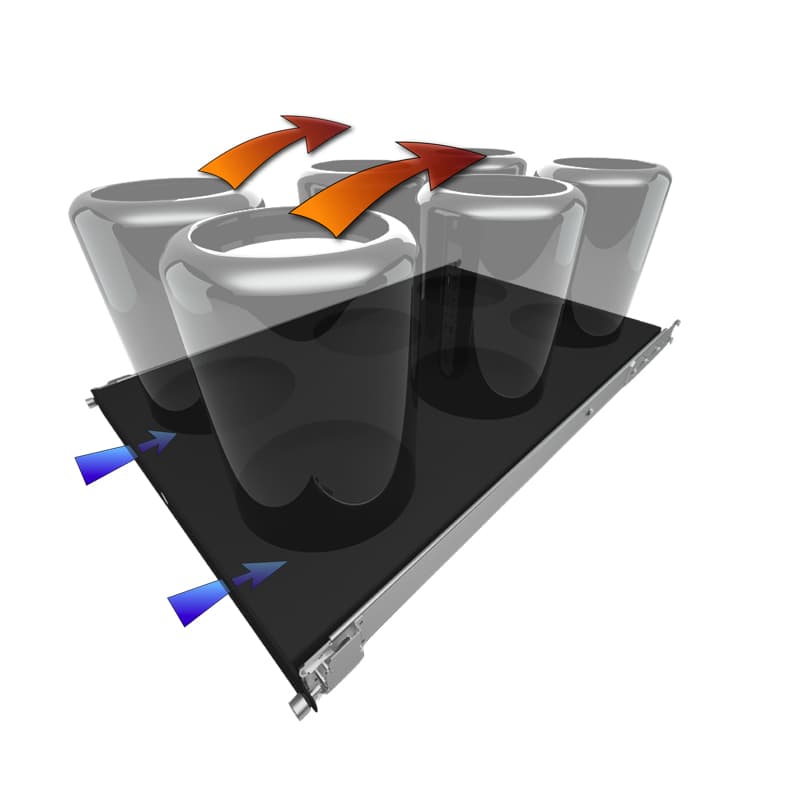

Ventilation

Our shelf's passive ventilation system designed with the Mac Pro isolates hot and cold sides. Cool air passes through the front of the shelf's air intake into a lower chamber where the Mac Pro's air intake resides. The Mac Pro's cooling system then passes the hot air through the top column back into your rack's hot area where it is then vented out.

MP Rack 6U Shelf for Apple Mac Pro (2nd Generation) VentilationMP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Ventilation

Expandability

If you only have a few Mac Pros to install, you can leave the other openings covered with the supplied caps and use the back area for shelving additional equipment such as hard drives or routers.

MP Rack 6U Shelf for Apple Mac Pro (2nd Generation) ExpandabilityMP Rack 6U Shelf for Apple Mac Pro (2nd Generation) Expandability
Legacy SKU HSQ-MPRACK
Material Acrylic, Steel
Finish Black, Powder Coat
Color Black
Dimensions Mac Pro 2nd Generation (Late 2013)
Weight 16.17 lb
